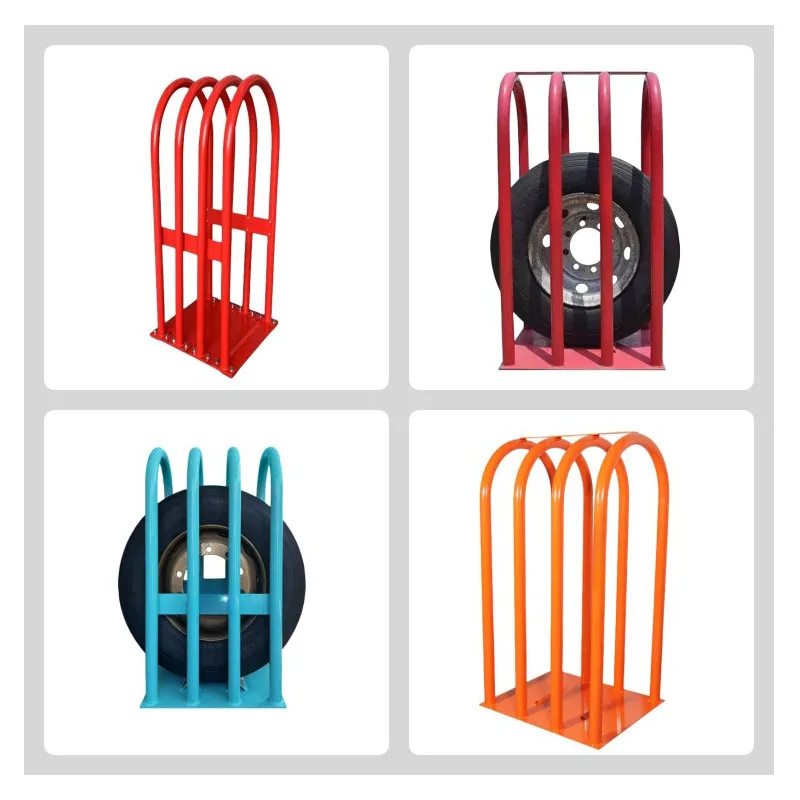

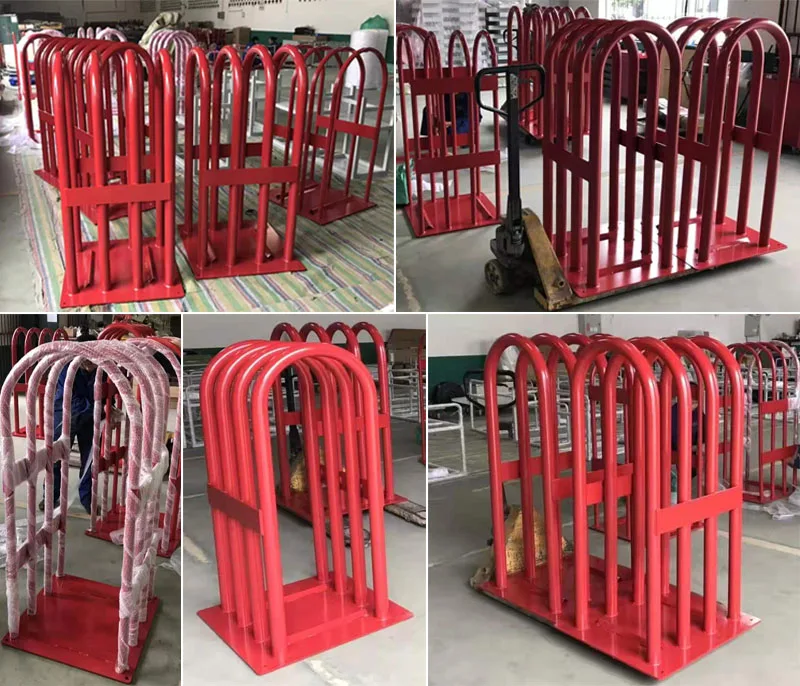

Tire Inflation Safety Cage

INTRODUCE:

Product name:Tire Tyre Inflation Safety Cage
Type:CAR HAND TOOLS
Application:Automotive Repair Tools
Function:Repair Used
Material:Steel
Color:Customers' Request
Package:Wooden Case
Feature:Easy Operation
Usage:Tire Repair
Keyword:tire Inflation Cage

TECHNICAL PARAMETERS:

Name

Tire Inflation Safety Cage

Material

steel

Application

Automotive Repair Tools

Package size

108*50*156cm

N. weight

100KG

G.weight

120KG

Why Choose Our Tire Inflation Cage?
Tire explosions during inflation cause thousands of injuries annually. Protect your team, workshop, and equipment with our  heavy-duty Tire Inflation Cage—engineered to withstand high-pressure tire failures and ensure 100% operator safety.


1. Military-Grade Safety Assurance
* Rugged Construction: Made from reinforced steel with anti-corrosion coating, tested to handle pressures up to 150 PSI—ideal for truck, OTR, agricultural, and industrial tires.
* 360° Protection: Cage bars absorb explosive force, directing debris downward to prevent lateral blast damage.

2. Universal Compatibility
* Adjustable inner frame fits tire sizes 15” to 54” (customizable upon request).
* Compatible with split rims, tubeless tires, and multi-piece wheel assemblies.

3. Effortless Operation
* Wide-access door with quick-lock latches for fast loading/unloading.
* Integrated air chuck holder keeps hoses organized during inflation.

4. Compliance & Certifications
* Meets OSHA/ANSI safety standards for industrial equipment.
* CE-certified for global export reliability.

Key Features of the Ranger 4-Bar Tire Inflation Cage
* 2-3/8" diameter, high-yield, seamless steel tubing
* 4-Bar welded-steel construction
* Gradual upper-arched mandrel bent tube design yields maximum space and is engineered to withstand and contain wheel and tire projectiles under extreme tire ruptures preventing potential injuries or deaths.
* Solid-steel welded-steel base
* Four tubular steel base frame supports keeps cage elevated off the floor to prevent rust and corrosion
* Full-width angle-iron wheel cradle

Technical Specifications
* Max tire width: 16" / 406 mm.
* Max tire diameter: 47" / 1194 mm.
* Height: 49-1/2" / 1257 mm.
* Width: 21" / 533 mm.
* Depth: 27" / 686 mm.
