Applicability: Where the diameter of 18-62mm in the various angles of the valve can be used
A molding: the face and the upper and lower chamfering a molding process
No need to grind: After processing the valve seat generally do not need grinding, with the new valve with the direct use
Accurate positioning: can accurately ensure that the valve seat face, the upper and lower chamfer position, width and coaxial with the valve duct; the reamer is guided by the catheter positioning valve stem and diameter is always concentric.
Permanent use: The reamer blade can be worn after the blunt, the reamer can be permanently used, an investment benefit for life
Can handle special hard seat: blade for the carbide material, Machinable special hard seat
Special features: Compared with the old reamer can improve the effectiveness of more than 10 times. Performance breakthroughs in the general people's imagination, buy a set to eliminate all the old reamer.
|
|
|
|
|
|
|
|

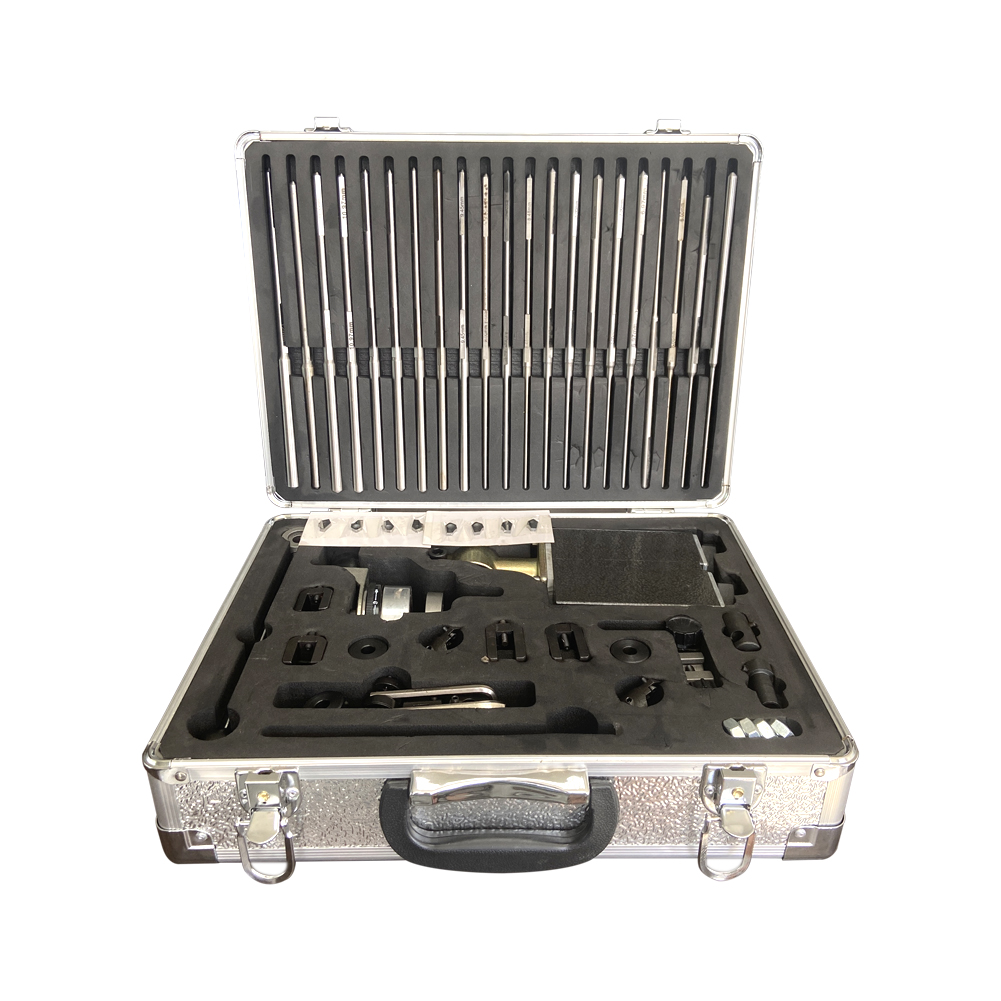

| Commodity name | Quantity(pc) | Leader dia(mm) | Quantity(pc) | Leader dia(mm) | Quantity(pc) | Blade type | Quantity (pc) |
| Body assembly | 1 | 5 | 1 | 9 | 1 | 45°-1.2 | 1 |
| Adjustalbe seat | 1 | 5.48 | 1 | 9.43 | 1 | 45°-0.8 | 1 |
| 18-40mm blade rest | 3 | 5.98 | 1 | 9.5 | 1 | 55°-1.5 | 1 |
| 40-60mm blade rest | 3 | 6 | 1 | 11 | 1 | 60°-1.2 | 1 |
| Tool presetter | 1 | 6.58 | 1 | 11.97 | 1 |
|
|
| Magnetic base | 1 | 6.97 | 1 | 12 | 1 |
|
|
| Iron plate | 1 | 7 | 1 | 5.5 | 1 |
|
|
| Rocking handle | 1 | 7.99 | 1 | 6.03 | 1 |
|
|
| Grinding wheel sleeve | 1set | 8.03 | 1 | 8 | 1 |
|
|
| Inner hexagon spanner | 2 | 8.97 | 1 | 9.52 | 1 |
|
|
|
|
|
| 10 | 1
|
|
|
1, Strong applicability: the valve with various angles of 14-65mm can be used;
2, One time molding: working face and upper and lower chamfering are processed at one time;
3, No grinding: the machined valve seat ring does not need grinding, and can be used directly with the new valve;
4, Accurate positioning: it can ensure the angle of valve seat working surface, the position and width of upper and lower chamfering, and the coaxiality with valve guide;
5, Usage: the reamer blade can be ground and changed after being blunt
6, Can process hard seat ring: the blade is made of cemented carbide, which can process hard seat ring;
7, Function: it can ream valve seat ring and process valve seat ring hole;
8, Improve the work efficiency: compared with the old reamer, the work efficiency can be increased by more than 10 times. The general performance of an old reamer can be eliminated by purchasing one set of ordinary reamers.
